Lunax UK Fire Rated Glass Installers
At Ação Suave, we proudly partner with Lunax to deliver expert installation of fire-rated glass systems across the UK. Our collaboration ensures top-tier safety and quality in every project, protecting your spaces with state-of-the-art fire-resistant solutions.
LUNAX
LUNAX’s extensive selection of fire-rated glass offers architects, consultants, and trade partners fully compliant and customizable solutions. Our expertise in safety and security is applied to each building project, guaranteeing the delivery of safe, comfortable, and sustainable construction.
Fire Rated glass solutions can provide a sense of openness, transparency, and visual security in the interior spaces as well as more natural daylight and connection to the outdoors, while ensuring the compartmentalization, escape ways and safe separation distances in case of fire.
Whatever performance requirements you must meet, we have a solution. We’re dedicated to providing multifunctional, fire-resistant glass solutions – imperceptible protection for safe, beautiful, sustainable, and comfortable buildings.
What is Fire Rated Glass?
Fire-rated glass refers to glazing that employs the latest technology to prevent glass breakage when exposed to high heat, such as in a fire. Keeping a glass surface intact protects building or room occupants not only from fire but smoke that may accompany the fire. A newer, safer version of wired glass exists, as do other glazing alternatives that are clear and wire free. The actual fire ratings assigned to the glass refer to the length of time the glass can be exposed to heat before it fails. Ratings can be measured in minutes or hours.
El CLass
Class EI (Integrity & Insulation) is considered as the highest performance classification level for fire compartmentalization. In addition to the integrity performance assessment, it measures the ability of construction products, such as fire resistant glass, to limit heat transfer during a fire so that neither the unexposed surface nor any material near that surface is ignited. Class EI glass also provides a strong barrier to heat for people near to it. EI-classified fire-resistant glass from Vetrotech compartmentalizes buildings and prevents the spread of fire to ensure safe evacuation of occupants, access by emergency services or create areas of refuge.

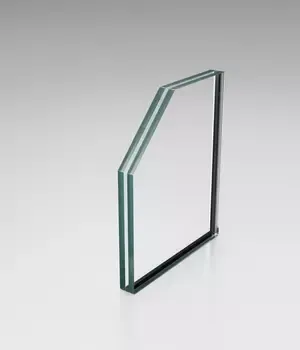

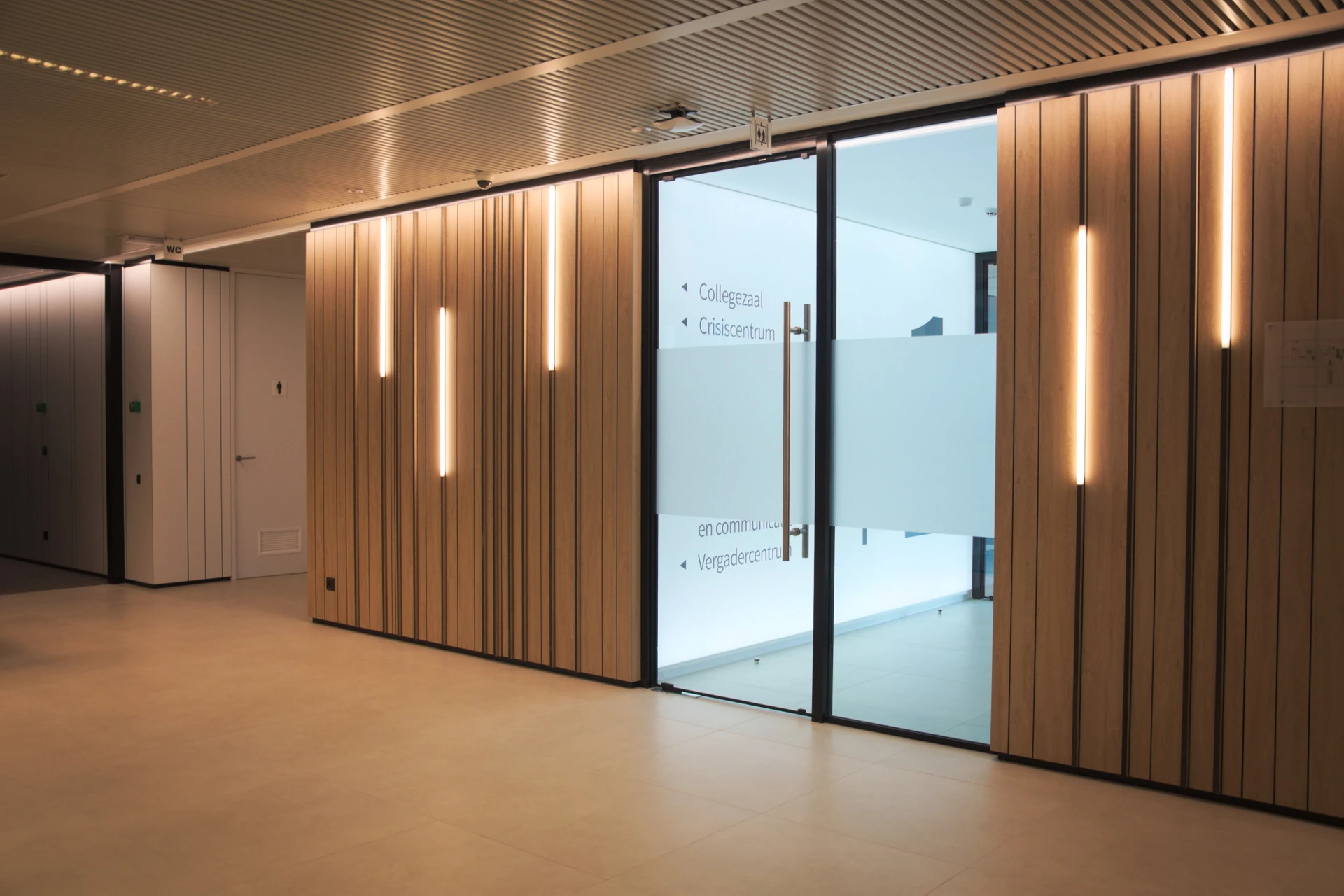

CONTRAFLAM
Most versatile solution for any kind of applications with maximum protection in EI class and biggest dimensions

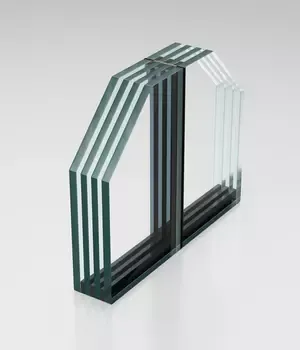

CONTRAFLAM Structure
Flush glazed design solution without vertical profiles, for best in class butt-jointed EI partitions

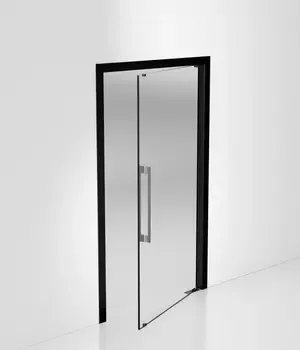

LUNAX PORTA

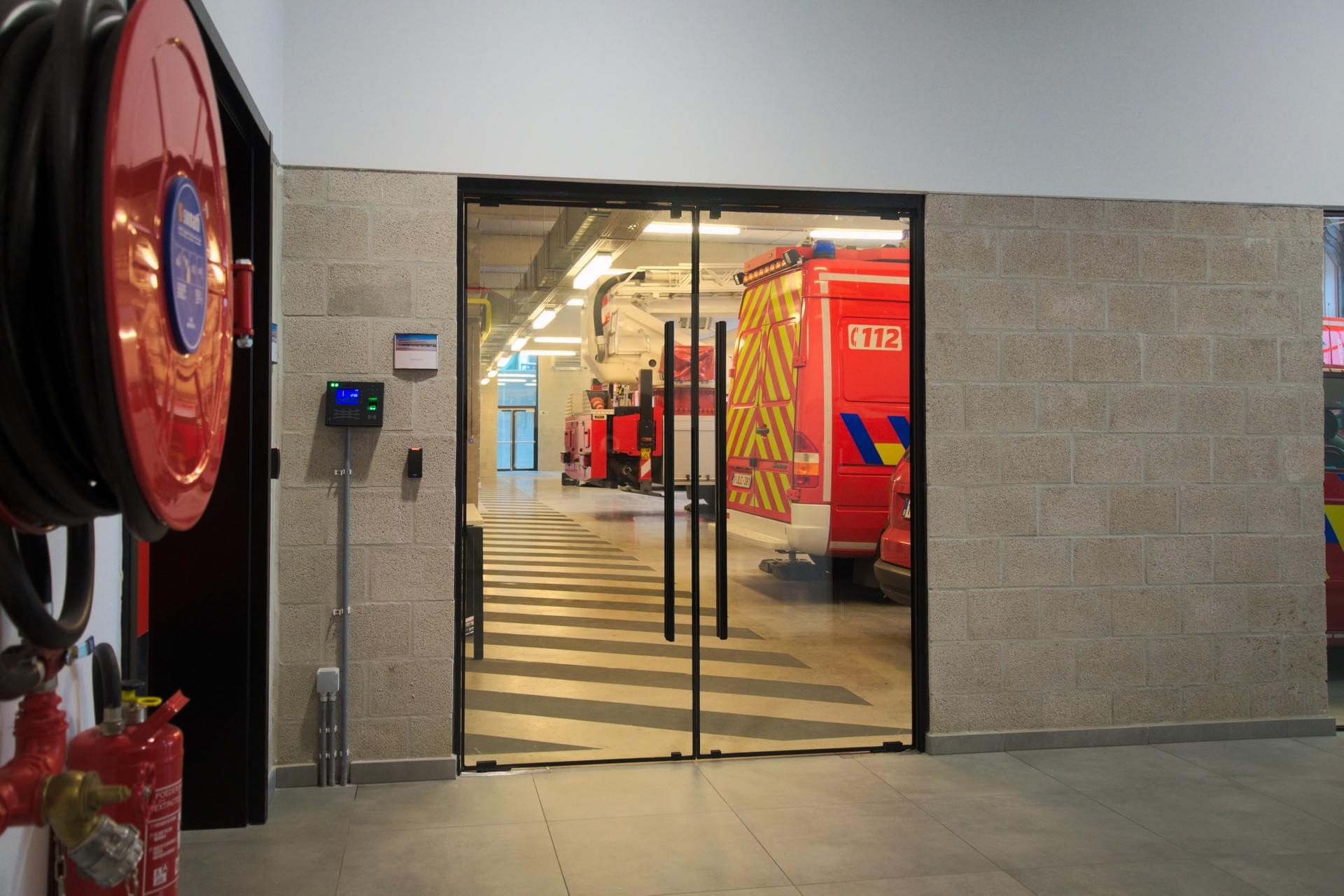

SINGLE, DOUBLE OR ASYMETRICAL DOOR
Choosing LUNAX, you’ll have the possibility to order a single, double or asymetrical door.
EW CLass
Class EW (Integrity & Radiation) rating is also a measure of Integrity performance (E) with the addition of the ability to minimize radiant heat transfer from the fire side to the unexposed side. By reducing the amount of energy passing through its surface, EW-classified fire-resistant glass can provide enhanced protection against the spread of fire and create safer evacuation passages.
CONTRAFLAM Lite
Longest performing radiation control for EW class with the most versatile multifunctionalities
VETROFLAM
Light & cost-effective solution limiting heat radiation in EW class applications
E CLass
Integrity Class (E) is the measure of the ability of a construction element with a separating function to withstand fire exposure without the transmission of fire to the unexposed side as a result of the passage of flames or hot gases. E-class fire-resistant glass from Vetrotech prevents early glass breakage or melting that can put lives at risk.
PYROSWISS
The preferred light-weight tempered glass solution for E class applications
D/DH Class
Smoke containment screens provide fire resistance and maintain integrity at a constant temperature over a set period of time or on a standardized time-temperature curve (DH).

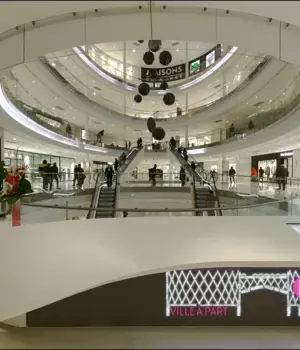

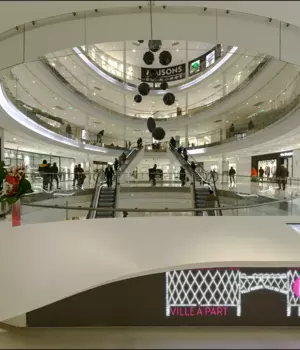

PYROSWISS SBS
Discrete glazed smoke barrier system to contain and channel hot smoke
Advantages of Lunax Doors
• Stylish and minimalistic fire resisting all glass door with four characteristic discrete clamps
• Classifications E, EW and EI (30 and 60)
• Single and double action mechanism (opening in both directions)
• Door leaf based on CONTRAFLAM® EN 14449 (laminated safety glass)
• Superior UV-stability (5000 hours according to EN ISO 12543-4)
• Proven mechanical durability (200,000 cycles; C5 according to EN 16034)
• Non-fire resistant double action door with same design that provides a consistent unique look to the doors with fire resistance properties

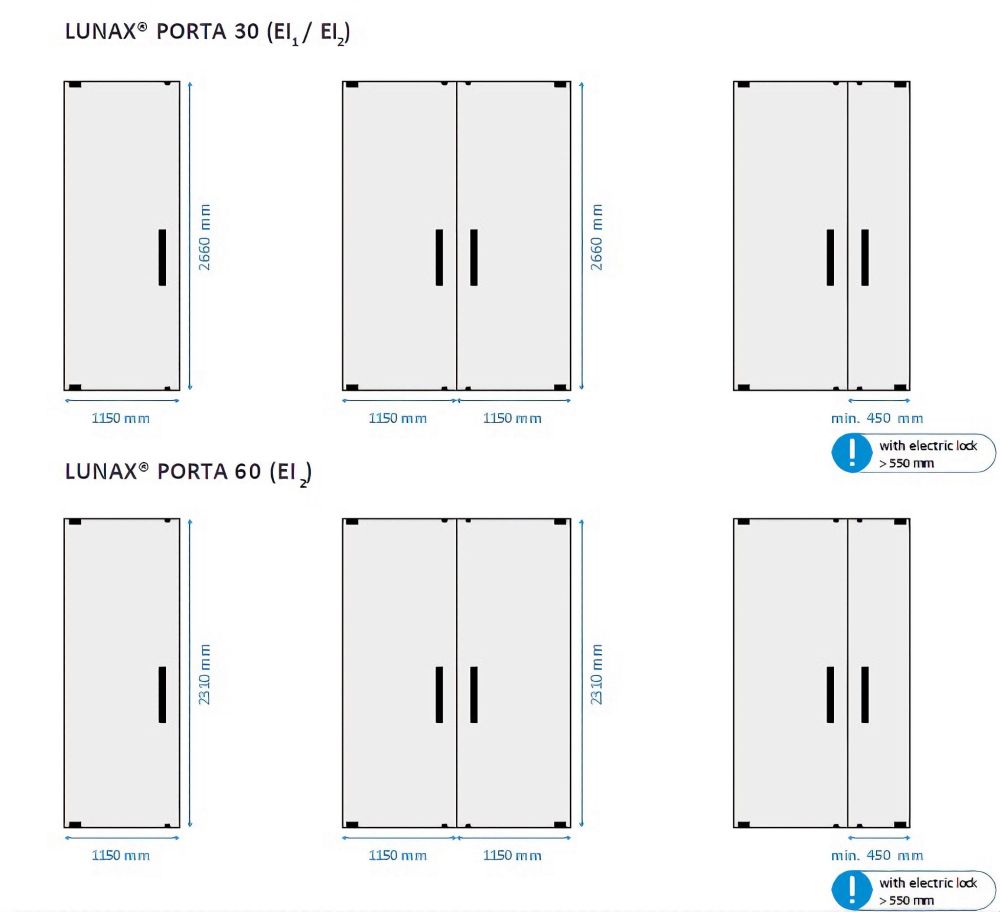

Maximum Approved Door Leaf Dimensions

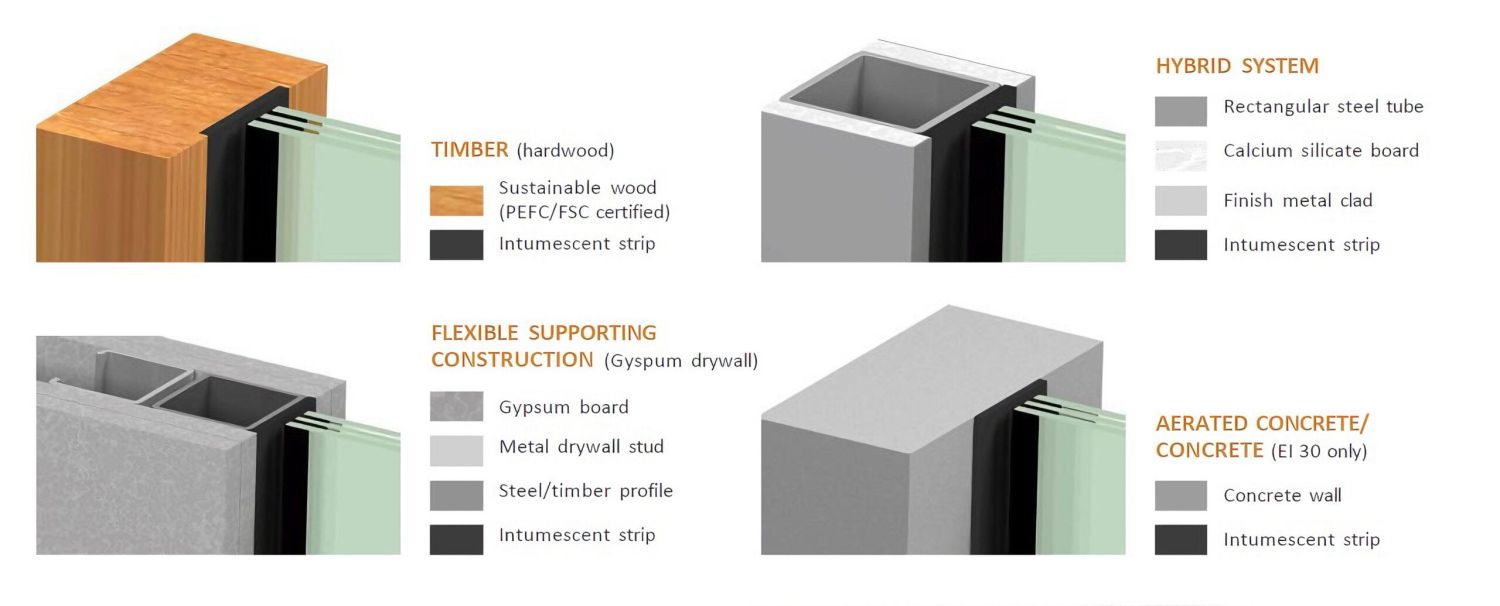

Frames and Supporting Constructions

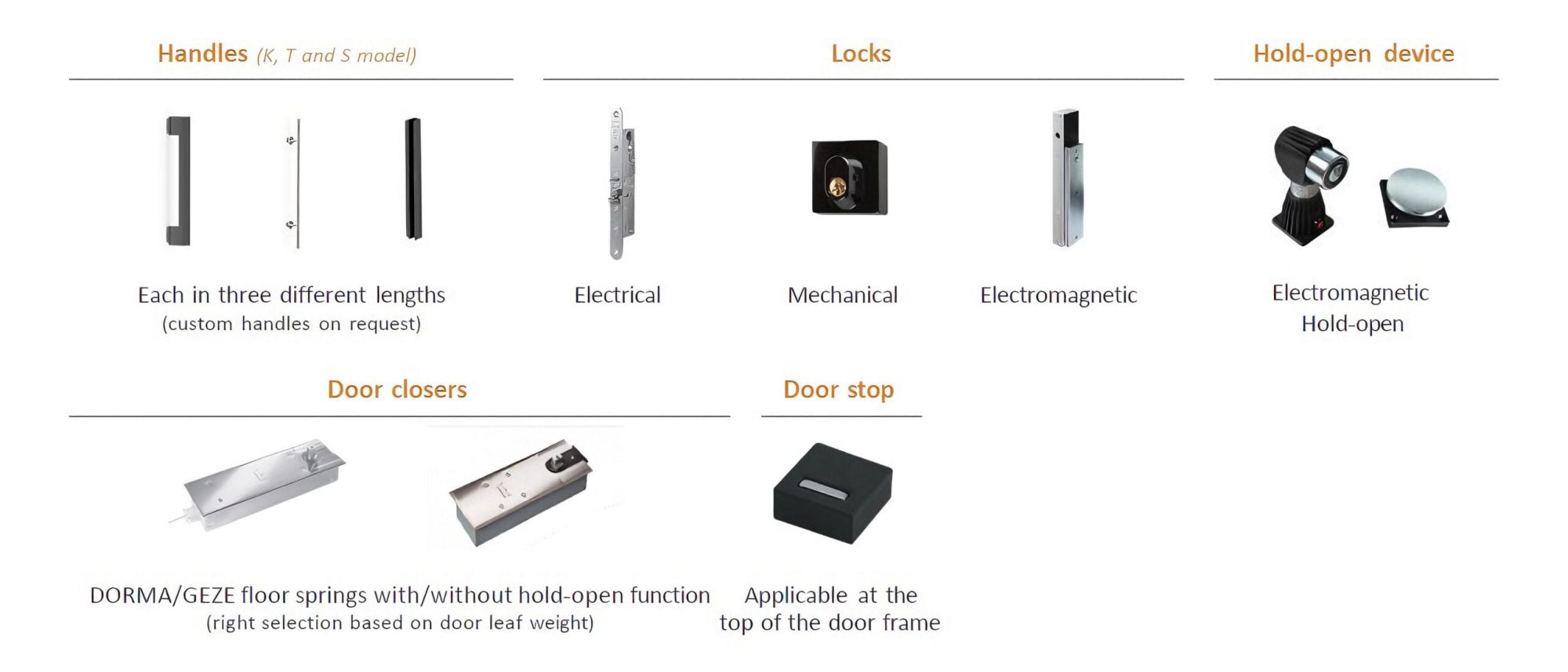

LUNAX Accessories
FEATURES & CUSTOMISATION
Glass panes of door can be exchanged by SGG DIAMANT® glass upon request to make use of its advantages, namely its perfect clarity, improved colour rendering and more natural light. LUNAX® can be manufactured with individual (RAL) colours for fittings, handles and customized handle shapes. Its glass can be adapted by application of silk screen printing on the surface or an edge frit. Decorative films in any design and colour can also be applied on the glass door leaf after installation without any technical restrictions.
In addition to fire resisting LUNAX® door, a non-fire-resisting version with same accessories and sizes available for fire resisting LUNAX®, can also be realized. As a result, all glass doors with and without fire protection in a specific project can have the same look.
